Secret References - Portkey Docs

Secret References let you point Portkey to credentials stored in your external vault. Instead of entering keys directly in Portkey, you create a reference, that tells Portkey where to fetch the value at runtime. This keeps sensitive material in infrastructure you already control and audit.

Available on Enterprise plans only. Requires:

Gateway version 2.2.4 or higher
Backend version 1.12.0 or higher (for air-gapped deployments).

Supported Secret Managers

Manager	`manager_type` value
AWS Secrets Manager	`aws_sm`
Azure Key Vault	`azure_kv`
HashiCorp Vault	`hashicorp_vault`

How It Works

Secret references use a split architecture between Portkey’s control plane and data plane:

You create a secret reference in Portkey via the API. The control plane stores only the reference configuration (manager type, secret path, auth config) — never the actual secret value.
At runtime, the data plane (AI Gateway) reads the reference configuration and fetches the secret directly from your external manager.
The control plane never fetches or sees the final secret. The data plane caches the fetched secret value for 5 minutes to avoid hitting your secret manager on every request. After the TTL expires, the next request triggers a fresh fetch.

Creating a Secret Reference

From the Control Panel

From your admin panel, go to Secret References and click Create.
Configure the reference identity:

Name: A name for this reference
Slug: Unique identifier, auto-generated from name if not added. Pattern: ^[a-zA-Z0-9_-]+$
Description: Optional context about this reference’s purpose

Choose your external vault from the supported options:
- AWS Secrets Manager
- Azure Key Vault
- HashiCorp Vault
Select the authentication type for your chosen manager and add the required details.

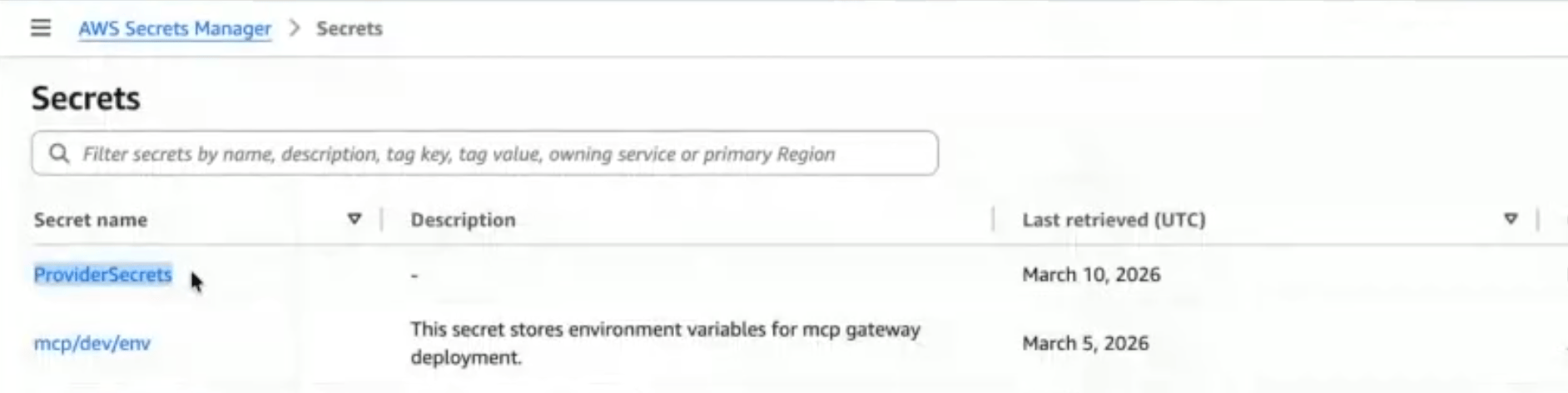

Secret Location:
- Secret Path: Add the Secret name from the external manager

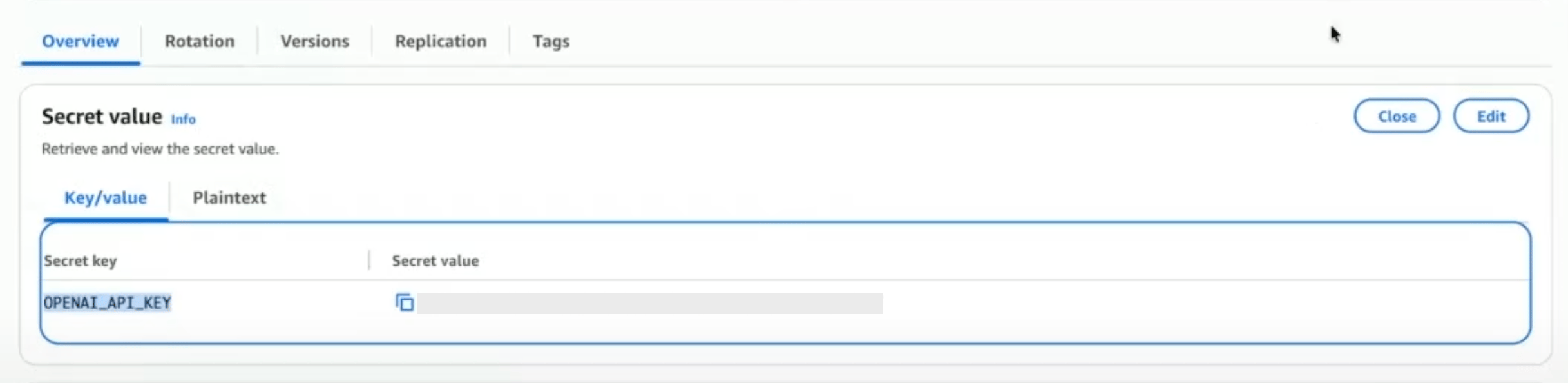

- Secret Key (optional): Add the specific key within the secret

Via Admin APIs

Send a POST request to /v1/secret-references with the following body:

{
  "name": "prod-openai-key",
  "manager_type": "aws_sm",
  "auth_config": {
    "aws_auth_type": "accessKey",
    "aws_access_key_id": "AKIA...",
    "aws_secret_access_key": "wJalr...",
    "aws_region": "us-east-1"
  },
  "secret_path": "prod/openai/api-key",
  "secret_key": "OPENAI_API_KEY"
}

Field	Type	Required	Description
`name`	string	Yes	Display name (1–255 chars).
`slug`	string	No	Unique identifier. Auto-generated from name if omitted. Pattern: `^[a-zA-Z0-9_-]+$`.
`description`	string \| null	No	Max 1024 chars.
`manager_type`	string	Yes	`aws_sm`, `azure_kv`, or `hashicorp_vault`.
`auth_config`	object	Yes	Auth credentials for connecting to the manager. See Auth Config below.
`secret_path`	string	Yes	Path to the secret in the external manager.
`secret_key`	string \| null	No	Specific key within the secret (when the secret holds multiple key-value pairs).
`allow_all_workspaces`	boolean	No	Default `true`. Grant access to all workspaces.
`allowed_workspaces`	string[]	No	Restrict access to specific workspace UUIDs or slugs. Mutually exclusive with `allow_all_workspaces: true`.
`tags`	object \| null	No	Key-value metadata tags.

Updating a Secret Reference

Send a PUT request to /v1/secret-references/:id with only the fields you want to change. At least one field must be provided. auth_config updates are merged with the existing config - you don’t need to resend the full object. Setting allow_all_workspaces: true purges any workspace-specific mappings. Providing allowed_workspaces automatically sets allow_all_workspaces to false.

Deleting a Secret Reference

Send a DELETE request to /v1/secret-references/:id. It will fail if the secret reference is currently in use by any integrations - remove those associations first.

Workspace Scoping

By default, a secret reference is accessible from all workspaces in your organisation. To restrict access:

Pass allowed_workspaces with an array of workspace UUIDs or slugs when creating or updating the reference.
This automatically disables allow_all_workspaces.

To revert to org-wide access, set allow_all_workspaces: true - this purges all workspace-specific mappings.

Auth Config

The auth_config schema depends on the manager_type you choose.

AWS Secrets Manager
Azure Key Vault
HashiCorp Vault

Access Key

Field	Type	Required
`aws_auth_type`	`"accessKey"`	Yes
`aws_access_key_id`	string	Yes
`aws_secret_access_key`	string	Yes
`aws_region`	string	Yes

Assumed Role

Use this when Portkey should assume an IAM role in your account.

Field	Type	Required
`aws_auth_type`	`"assumedRole"`	Yes
`aws_role_arn`	string	Yes
`aws_external_id`	string \| null	No
`aws_region`	string	Yes

Service Role

Uses Portkey’s own service role. Requires your secret’s resource policy to grant Portkey access.

Field	Type	Required
`aws_auth_type`	`"serviceRole"`	Yes
`aws_region`	string	No

Entra (Service Principal)

Field	Type	Required
`azure_auth_mode`	`"entra"`	Yes
`azure_entra_tenant_id`	string	Yes
`azure_entra_client_id`	string	Yes
`azure_entra_client_secret`	string	Yes
`azure_vault_url`	url	Yes

Managed Identity

Field	Type	Required
`azure_auth_mode`	`"managed"`	Yes
`azure_managed_client_id`	string	No
`azure_vault_url`	url	Yes

Default Credentials

Field	Type	Required
`azure_auth_mode`	`"default"`	Yes
`azure_vault_url`	url	Yes

Token

Field	Type	Required
`vault_auth_type`	`"token"`	Yes
`vault_addr`	url	Yes
`vault_token`	string	Yes
`vault_namespace`	string	No

AppRole

Field	Type	Required
`vault_auth_type`	`"approle"`	Yes
`vault_addr`	url	Yes
`vault_role_id`	string	Yes
`vault_secret_id`	string	Yes
`vault_namespace`	string	No

Kubernetes

Field	Type	Required
`vault_auth_type`	`"kubernetes"`	Yes
`vault_addr`	url	Yes
`vault_role`	string	Yes
`vault_namespace`	string	No

Secret Mappings

Secret mappings allow integrations to dynamically resolve secrets from secret references at runtime, instead of storing credentials directly. The secret_mappings field is an optional JSON array accepted on create and update in Integrations.

Schema

Each entry in the secret_mappings array:

Field	Type	Required	Description
`target_field`	string	Yes	The field on the entity that should be populated from the secret reference. Must be unique within the array.
`secret_reference_id`	string	Yes	UUID or slug of the secret reference to resolve. Must belong to the same organisation and be accessible by the workspace.
`secret_key`	string \| null	No	Override the `secret_key` defined on the secret reference. Use to pick a specific key from a multi-value secret.
`value_format`	string \| null	No	Format of the secret value. Either `json` or `string`. Use `json` when the secret value is a JSON object that should be parsed.

From the Control Panel

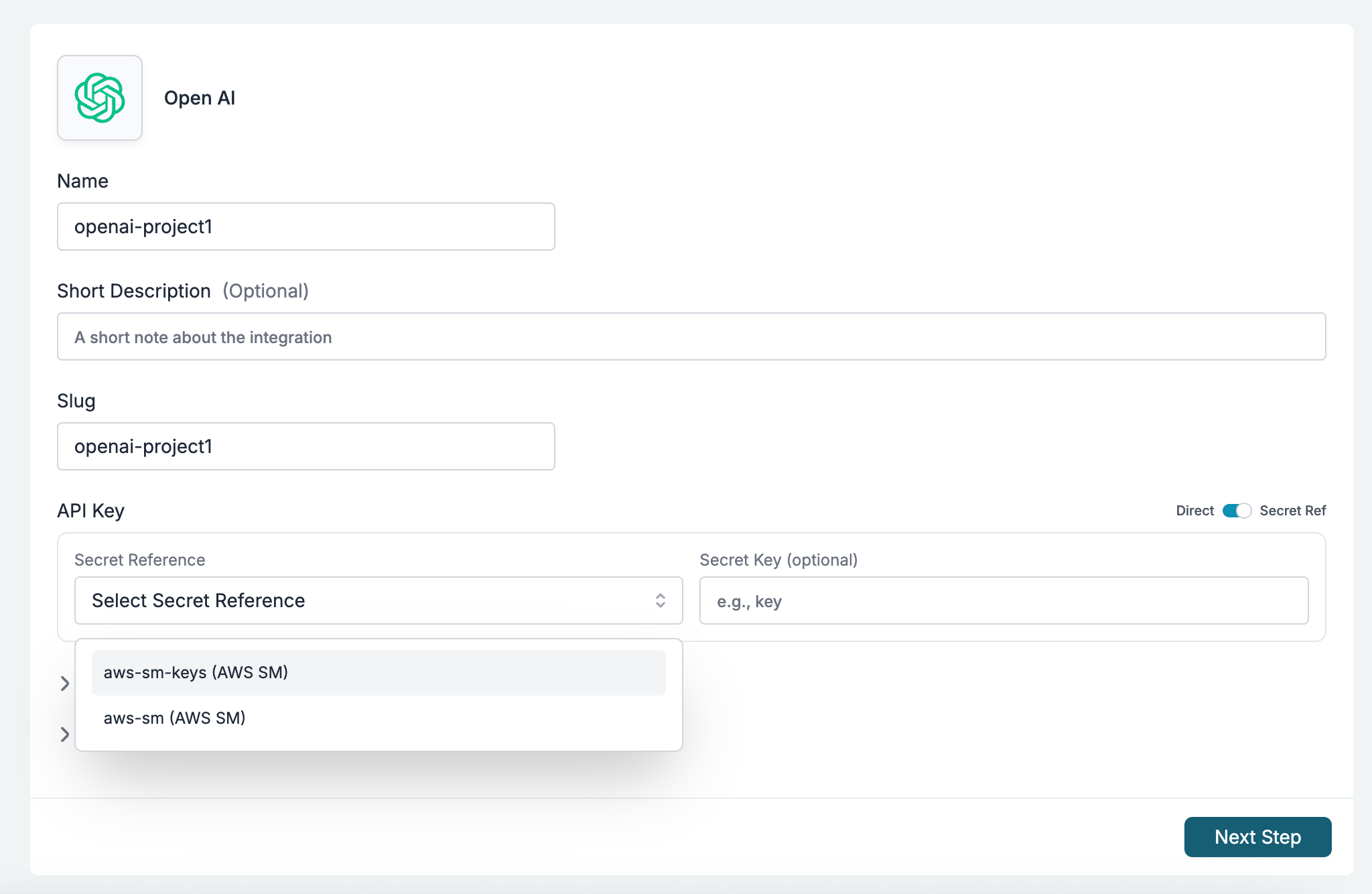

If you’re storing provider API keys in your vault, map your secrets in LLM Integrations:

While creating a new LLM integration (or editing an existing one), you’ll see a toggle. Switch to Secret Ref to use the key via your vault.

Select the secret reference. Optionally, provide a Secret Key if the reference contains multiple values.

Via Admin APIs

Valid `target_field` Values

LLM Integrations
MCP Integrations

Integrations (POST /v1/integrations, PUT /v1/integrations/:integrationId)

target_field	Description
`key`	The provider API key. When mapped, the `key` body field can be omitted.
`configurations.<field>`	Any provider-specific configuration field (e.g. `configurations.aws_secret_access_key`, `configurations.azure_entra_client_secret`).

MCP Integrations (POST /v1/mcp-integrations, PUT /v1/mcp-integrations/:mcpIntegrationId)

MCP integration secret mappings require:

Enterprise Gateway version 2.7.0 or higher
Frontend version 1.8.1 or higher
Backend version 1.15.0 or higher

target_field	Description
`configurations.<field>`	Any MCP server configuration field (e.g. `configurations.oauth_metadata`, `configurations.headers`, `configurations.passthrough_headers`, `configurations.forward_headers`, `configurations.external_auth_config`, `configurations.jwt_validation`).

MCP integrations support the same secret mapping functionality as LLM integrations. This is particularly useful for:

OAuth credentials: Store OAuth client secrets, tokens, and metadata in your vault
API keys: Reference API keys for MCP servers that use header-based authentication
Complex configurations: Use value_format: "json" for nested configuration objects like OAuth metadata

Example: MCP Integration with OAuth metadata from vault

{
  "name": "GitHub MCP",
  "slug": "github-mcp",
  "server_url": "https://api.githubcopilot.com/mcp",
  "auth_type": "oauth",
  "secret_mappings": [
    {
      "target_field": "configurations.oauth_metadata",
      "secret_reference_id": "my-github-oauth",
      "value_format": "json"
    }
  ]
}

Example

{
  "secret_mappings": [
    {
      "target_field": "key",
      "secret_reference_id": "my-aws-api-key"
    },
    {
      "target_field": "configurations.aws_secret_access_key",
      "secret_reference_id": "aws-credentials-ref",
      "secret_key": "secret_access_key"
    },
    {
      "target_field": "configurations.oauth_metadata",
      "secret_reference_id": "my-github-oauth",
      "value_format": "json"
    }
  ]
}

Using `value_format: json`

When your secret value is a JSON object (not a plain string), use value_format: "json" to have Portkey parse the value as JSON before injecting it into the configuration.

{
  "secret_mappings": [
    {
      "secret_key": "oauth_metadata",
      "target_field": "configurations.oauth_metadata",
      "value_format": "json",
      "secret_reference_id": "my-github-oauth"
    }
  ]
}

This is useful for complex configuration objects like OAuth metadata that contain multiple nested fields.

Example: Storing OAuth Metadata for GitHub MCP

This walkthrough shows how to store GitHub OAuth credentials in AWS Secrets Manager and reference them in Portkey for an MCP integration.

1. Store the secret in AWS Secrets Manager

In your AWS Secrets Manager console (or via CLI), create a secret with:

Secret name (path): portkey/mcp/github-oauth
Secret key: oauth_metadata
Secret value: Store the OAuth metadata as a native JSON object — no need to stringify it.

{
  "client_id": "Ov**********6lf4J",
  "client_secret": "99*************0",
  "redirect_uri": "https://mcp.portkey.ai/oauth/upstream-callback",
  "scope": "repo read:org read:user read:project"
}

AWS Secrets Manager natively supports JSON values. Store your OAuth metadata as a JSON object directly — you do not need to JSON.stringify() it first. Portkey (with value_format: "json") will parse the value correctly either way, but storing as native JSON makes it easier to read and edit in the AWS console.

2. Create a secret reference in Portkey

In the Portkey dashboard, go to Secret References and click Create:

Name: my-github-oauth
Secret Manager: Select AWS Secrets Manager (or Azure Key Vault / HashiCorp Vault, depending on where you stored the secret)
Authentication: Provide the credentials for your chosen manager
Secret Location:
- Secret Path: portkey/mcp/github-oauth
- Secret Key: oauth_metadata

Or via the API:

{
  "name": "my-github-oauth",
  "manager_type": "aws_sm",
  "auth_config": {
    "aws_auth_type": "serviceRole",
    "aws_region": "us-east-1"
  },
  "secret_path": "portkey/mcp/github-oauth",
  "secret_key": "oauth_metadata"
}

This example uses the serviceRole auth type, where Portkey authenticates using its own service role — your secret’s resource policy must grant Portkey access. When you retrieve a secret reference via the API, any sensitive auth_config fields are automatically masked.

3. Use the secret reference in your MCP integration

When creating or updating the GitHub MCP integration, map oauth_metadata to your secret reference:

{
  "name": "GitHub MCP",
  "server_url": "https://api.githubcopilot.com/mcp",
  "auth_type": "oauth",
  "secret_mappings": [
    {
      "target_field": "configurations.oauth_metadata",
      "secret_reference_id": "my-github-oauth",
      "secret_key": "oauth_metadata",
      "value_format": "json"
    }
  ]
}

At runtime, Portkey’s data plane fetches the OAuth metadata from AWS Secrets Manager and injects it into the MCP integration configuration — no credentials are stored in Portkey’s control plane.

Example: Storing External Auth Config for MCP

This example shows how to store OAuth/OIDC provider configuration (e.g., Okta) for external authentication in your MCP integrations.

1. Store the external auth config in your vault

In AWS Secrets Manager (or your preferred vault), create a secret with:

Secret name: portkey/mcp/okta-auth
Secret key: external_auth_config
Secret value: Store the OAuth configuration as a JSON object:

{
  "issuer": "https://your-org.okta.com",
  "authorization_endpoint": "https://your-org.okta.com/oauth2/v1/authorize",
  "token_endpoint": "https://your-org.okta.com/oauth2/v1/token",
  "revocation_endpoint": "https://your-org.okta.com/oauth2/v1/revoke",
  "registration_endpoint": "https://your-org.okta.com/oauth2/v1/clients",
  "client_id": "0oaxxxxxxxxxxxxxxxxx",
  "client_secret": "your-client-secret-here",
  "scope": "openid email profile offline_access",
  "response_types_supported": ["code"],
  "code_challenge_methods_supported": ["S256"],
  "grant_types_supported": ["authorization_code", "refresh_token"],
  "token_endpoint_auth_methods_supported": ["client_secret_basic", "client_secret_post"],
  "scopes_supported": ["openid", "email", "profile", "offline_access"]
}

2. Create a secret reference in Portkey

{
  "name": "okta-external-auth",
  "manager_type": "aws_sm",
  "auth_config": {
    "aws_auth_type": "serviceRole",
    "aws_region": "us-east-1"
  },
  "secret_path": "portkey/mcp/okta-auth",
  "secret_key": "external_auth_config"
}

3. Use the secret reference in your MCP integration

{
  "name": "Internal MCP Server",
  "server_url": "https://mcp.internal.yourcompany.com",
  "auth_type": "oauth",
  "secret_mappings": [
    {
      "target_field": "configurations.external_auth_config",
      "secret_reference_id": "okta-external-auth",
      "secret_key": "external_auth_config",
      "value_format": "json"
    }
  ]
}

Example: Storing JWT Validation Config for MCP

For MCP servers that use JWT validation with an external IdP, you can store the validation configuration in your vault.

1. Store the JWT validation config in your vault

Secret name: portkey/mcp/jwt-validation
Secret key: jwt_validation
Secret value:

{
  "jwksUri": "https://your-org.okta.com/oauth2/v1/keys",
  "algorithms": ["RS256"],
  "requiredClaims": ["sub", "email"],
  "claimValues": {
    "iss": {
      "values": "https://your-org.okta.com",
      "matchType": "exact"
    }
  }
}

2. Create a secret reference in Portkey

{
  "name": "okta-jwt-validation",
  "manager_type": "aws_sm",
  "auth_config": {
    "aws_auth_type": "assumedRole",
    "aws_role_arn": "arn:aws:iam::123456789012:role/PortkeySecretAccess",
    "aws_region": "us-east-1"
  },
  "secret_path": "portkey/mcp/jwt-validation",
  "secret_key": "jwt_validation"
}

3. Use the secret reference in your MCP integration

{
  "name": "Internal MCP Server",
  "server_url": "https://mcp.internal.yourcompany.com",
  "auth_type": "external",
  "secret_mappings": [
    {
      "target_field": "configurations.jwt_validation",
      "secret_reference_id": "okta-jwt-validation",
      "secret_key": "jwt_validation",
      "value_format": "json"
    }
  ]
}

Example: Combining External Auth and JWT Validation

For complete external OAuth setups, you may need both external_auth_config (for OAuth flow) and jwt_validation (for token verification):

{
  "name": "Secure Internal MCP",
  "server_url": "https://mcp.internal.yourcompany.com",
  "auth_type": "external",
  "secret_mappings": [
    {
      "target_field": "configurations.external_auth_config",
      "secret_reference_id": "okta-external-auth",
      "value_format": "json"
    },
    {
      "target_field": "configurations.jwt_validation",
      "secret_reference_id": "okta-jwt-validation",
      "value_format": "json"
    }
  ]
}

This setup:

Uses external_auth_config to configure the OAuth endpoints and credentials for user authentication
Uses jwt_validation to validate incoming tokens against your IdP’s JWKS

Validation Rules

secret_mappings must be an array (if provided).
Each target_field must be one of the allowed fields/prefixes for the entity type.
No duplicate target_field values within the array.
Each secret_reference_id must reference an existing, active secret reference in the same organisation.
If the entity is workspace-scoped, the secret reference must be accessible to that workspace (either allow_all_workspaces: true or explicitly mapped).
On create, target_field values with the configurations. prefix are auto-normalized — you can pass just the field name without the prefix and it will be prepended.

Behavior

At gateway runtime, mapped fields are resolved from the external secret manager using the referenced secret reference’s auth_config, secret_path, and the mapping’s secret_key (or the secret reference’s default secret_key).
When a target_field of key is mapped, the key field on the entity becomes optional during creation.
Secret mappings are returned in GET responses for integrations.

Sensitive Field Masking

When you retrieve a secret reference via the API, sensitive auth_config fields are automatically masked. The original field is replaced with a masked_ prefixed version containing a truncated value.

Original Field	Masked Field
`aws_secret_access_key`	`masked_aws_secret_access_key`
`aws_access_key_id`	`masked_aws_access_key_id`
`aws_role_arn`	`masked_aws_role_arn`
`aws_external_id`	`masked_aws_external_id`
`azure_entra_client_secret`	`masked_azure_entra_client_secret`
`vault_token`	`masked_vault_token`
`vault_secret_id`	`masked_vault_secret_id`

​Supported Secret Managers

​How It Works

​Creating a Secret Reference

​From the Control Panel

​Via Admin APIs

​Updating a Secret Reference

​Deleting a Secret Reference

​Workspace Scoping

​Auth Config

​Access Key

​Assumed Role

​Service Role

​Entra (Service Principal)

​Managed Identity

​Default Credentials

​Token

​AppRole

​Kubernetes

​Secret Mappings

​Schema

​From the Control Panel

​Via Admin APIs

​Valid target_field Values

​Example

​Using value_format: json

​Example: Storing OAuth Metadata for GitHub MCP

​1. Store the secret in AWS Secrets Manager

​2. Create a secret reference in Portkey

​3. Use the secret reference in your MCP integration

​Example: Storing External Auth Config for MCP

​1. Store the external auth config in your vault

​2. Create a secret reference in Portkey

​3. Use the secret reference in your MCP integration

​Example: Storing JWT Validation Config for MCP

​1. Store the JWT validation config in your vault

​2. Create a secret reference in Portkey

​3. Use the secret reference in your MCP integration

​Example: Combining External Auth and JWT Validation

​Validation Rules

​Behavior

​Sensitive Field Masking

​Access Requirements

​API Reference

Create Secret Reference

List Secret References

Retrieve Secret Reference

Update Secret Reference

Delete Secret Reference

Supported Secret Managers

How It Works

Creating a Secret Reference

From the Control Panel

Via Admin APIs

Updating a Secret Reference

Deleting a Secret Reference

Workspace Scoping

Auth Config

Access Key

Assumed Role

Service Role

Entra (Service Principal)

Managed Identity

Default Credentials

Token

AppRole

Kubernetes

Secret Mappings

Schema

From the Control Panel

Via Admin APIs

Valid `target_field` Values

Example

Using `value_format: json`

Example: Storing OAuth Metadata for GitHub MCP

1. Store the secret in AWS Secrets Manager

2. Create a secret reference in Portkey

3. Use the secret reference in your MCP integration

Example: Storing External Auth Config for MCP

1. Store the external auth config in your vault

2. Create a secret reference in Portkey

3. Use the secret reference in your MCP integration

Example: Storing JWT Validation Config for MCP

1. Store the JWT validation config in your vault

2. Create a secret reference in Portkey

3. Use the secret reference in your MCP integration

Example: Combining External Auth and JWT Validation

Validation Rules

Behavior

Sensitive Field Masking

Access Requirements

API Reference
